2D DRAFTING SERVICES
Our 2D drafting services convert design information into clean, accurate technical drawings. Each sheet is set to verified scale with disciplined line hierarchy, consistent layering and clear annotation, so every line serves precision and purpose.

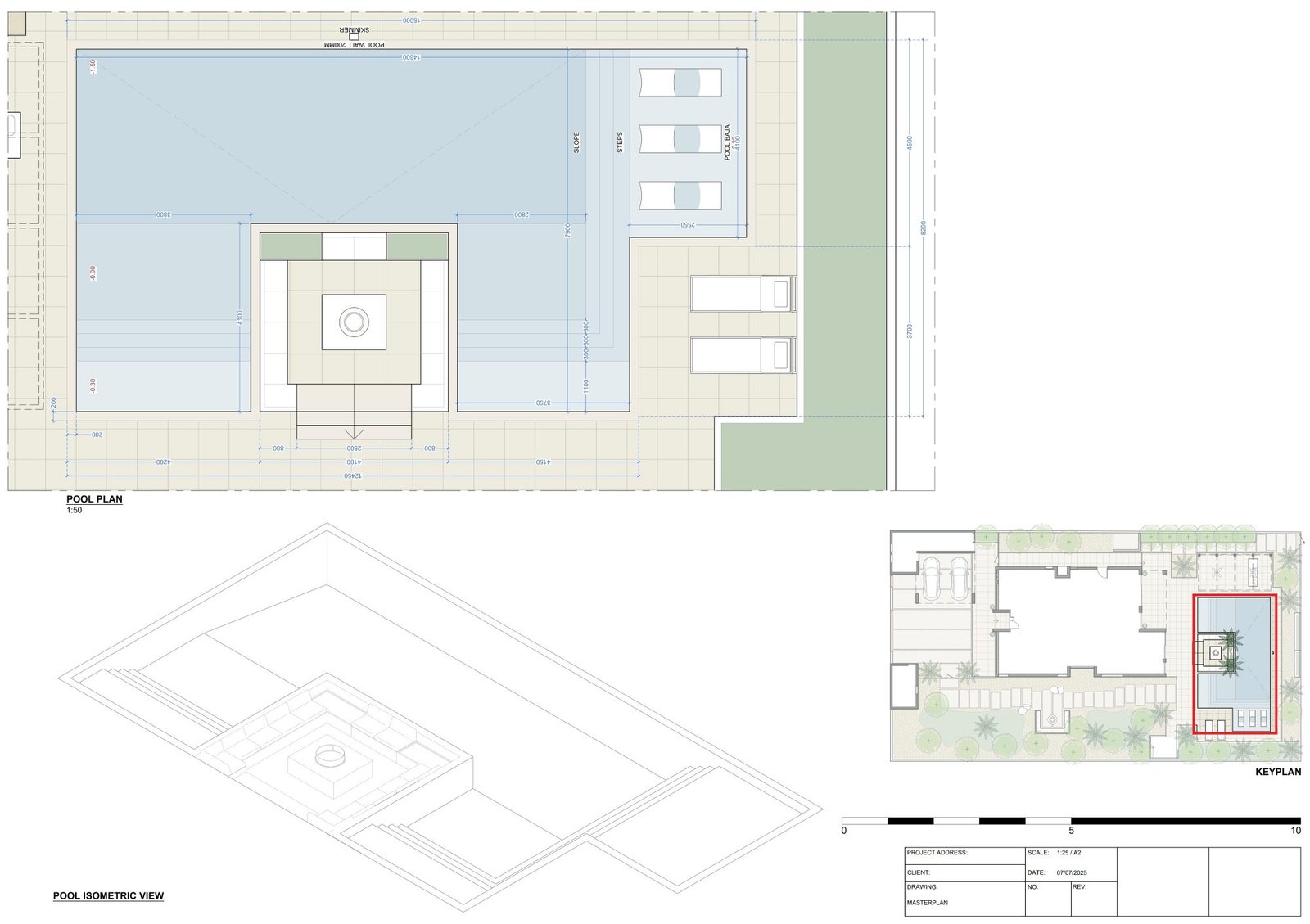

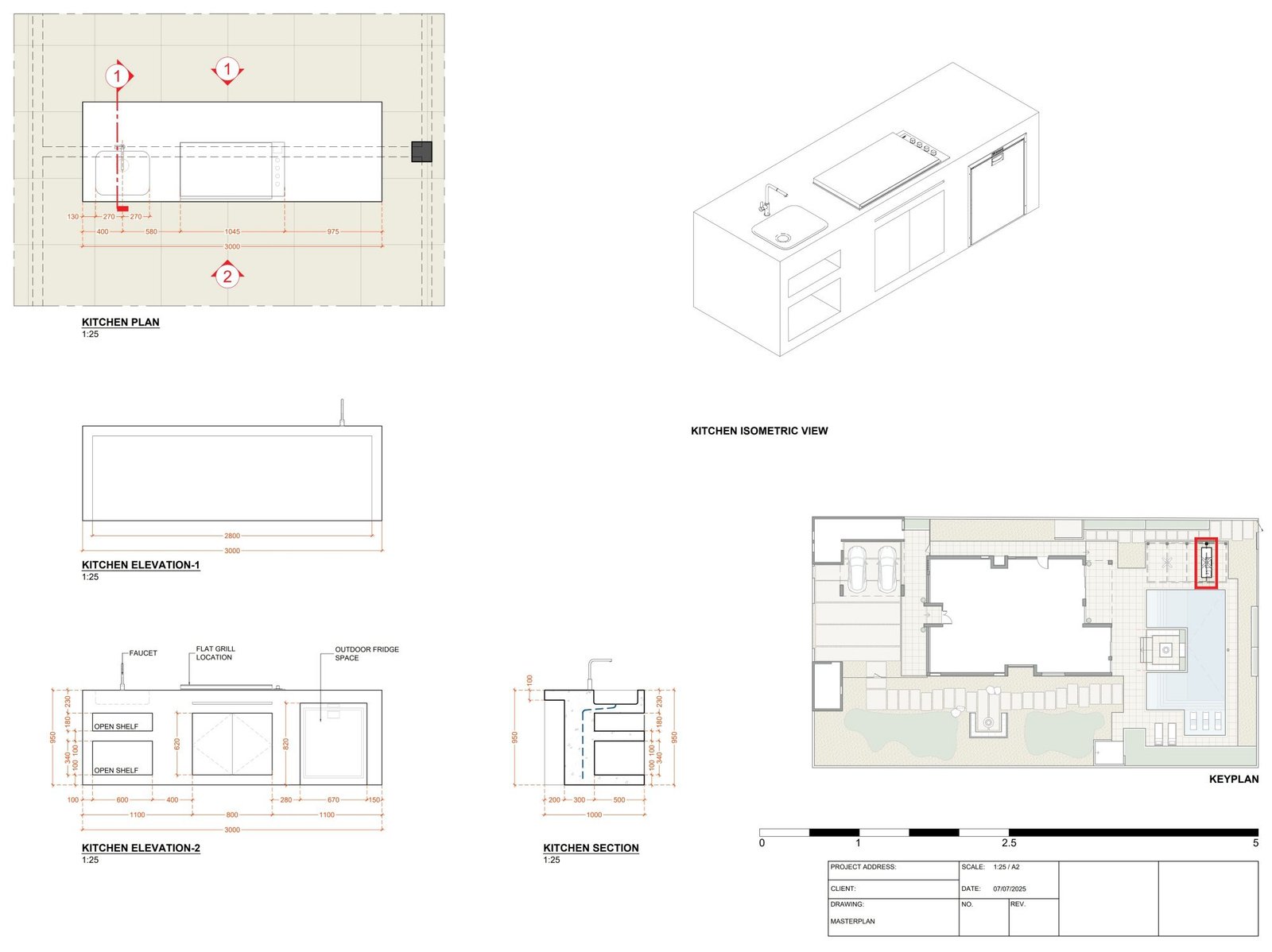

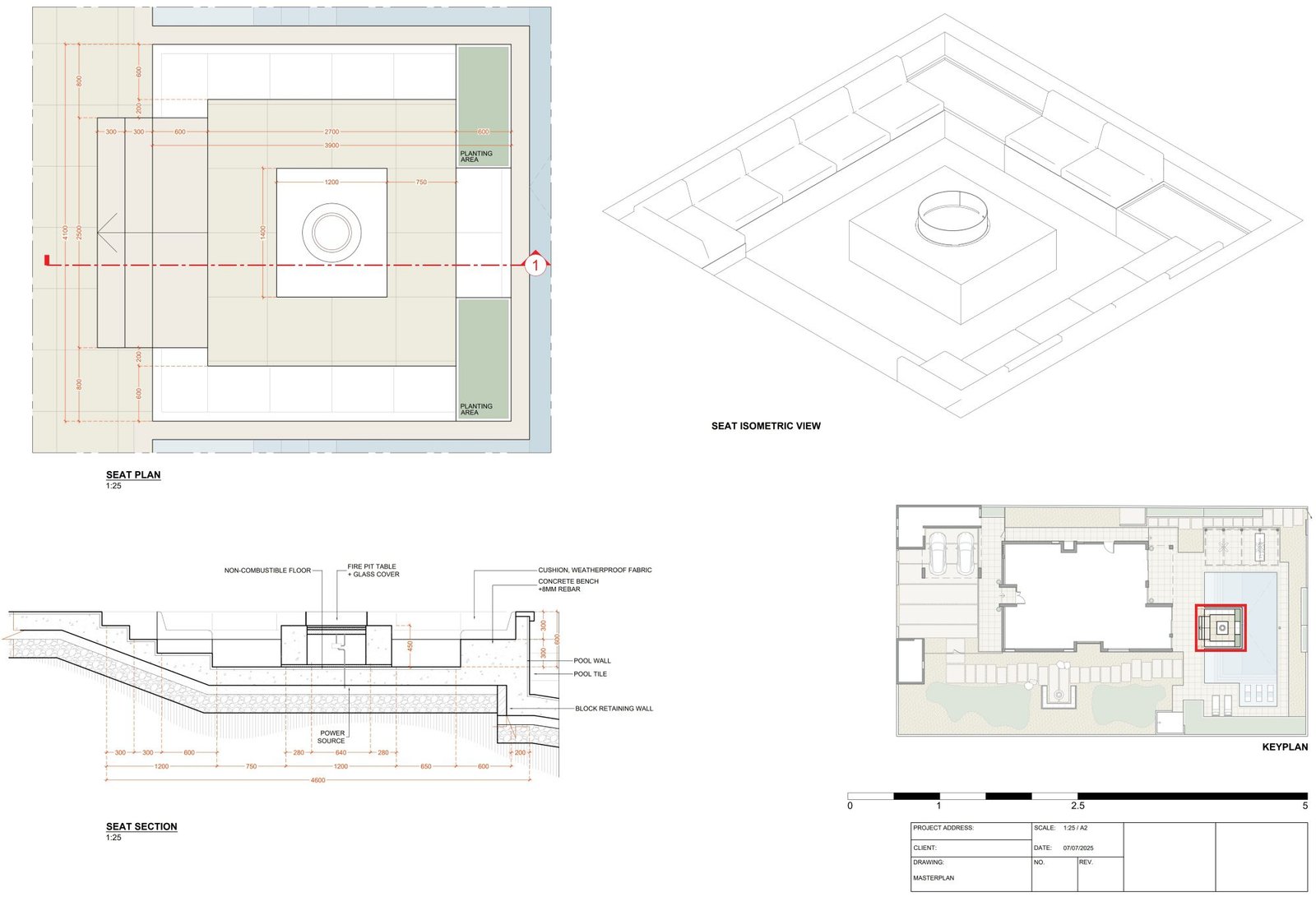

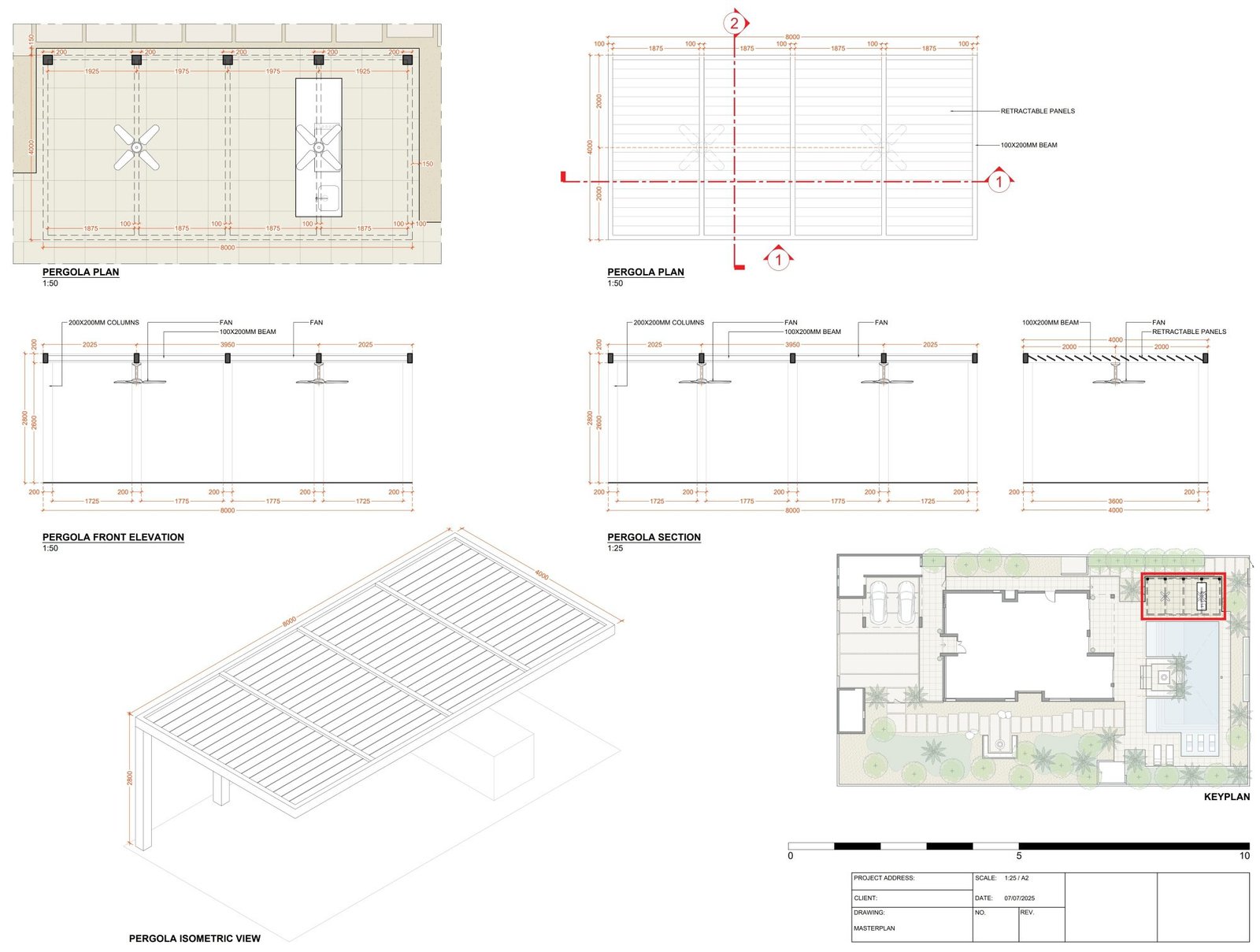

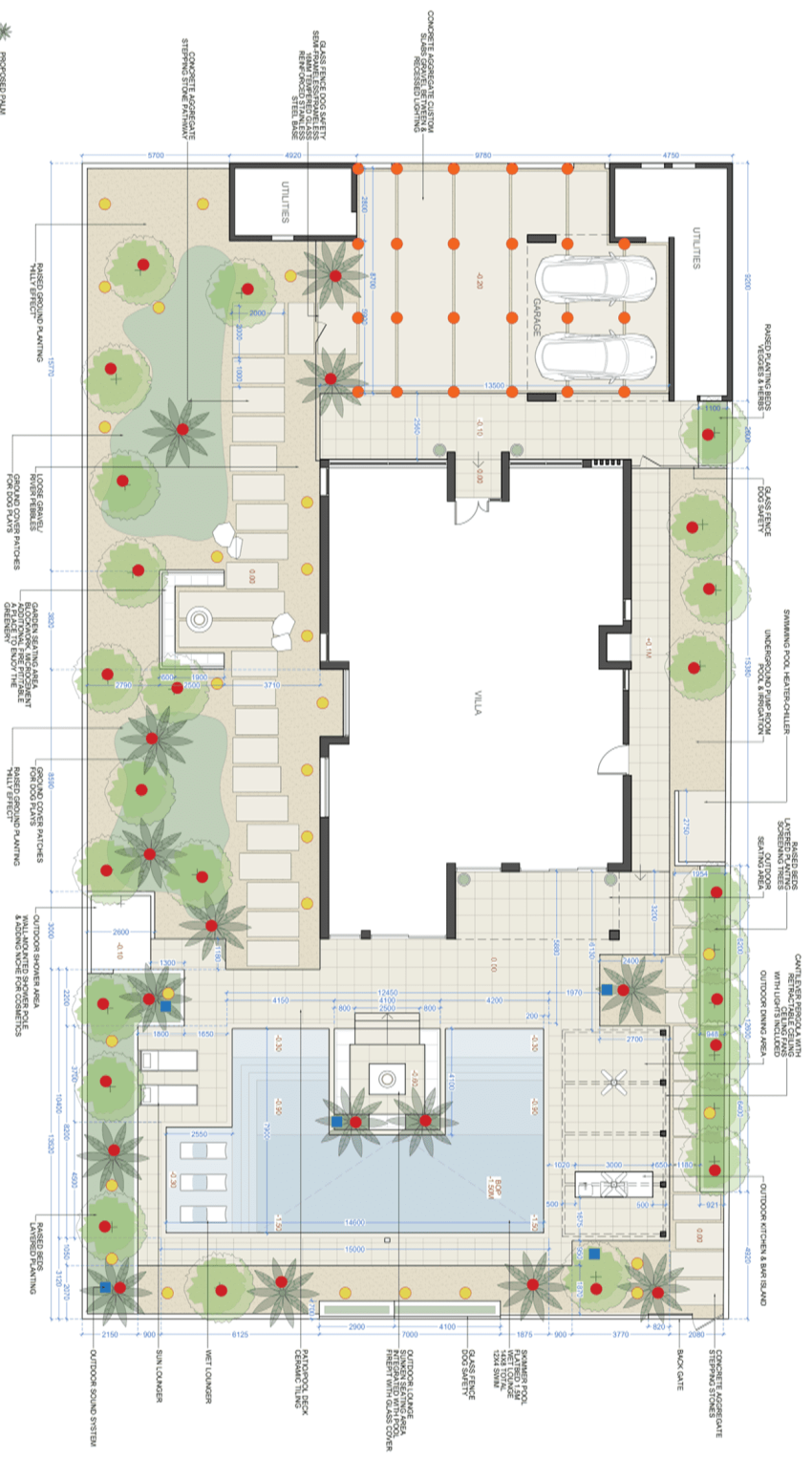

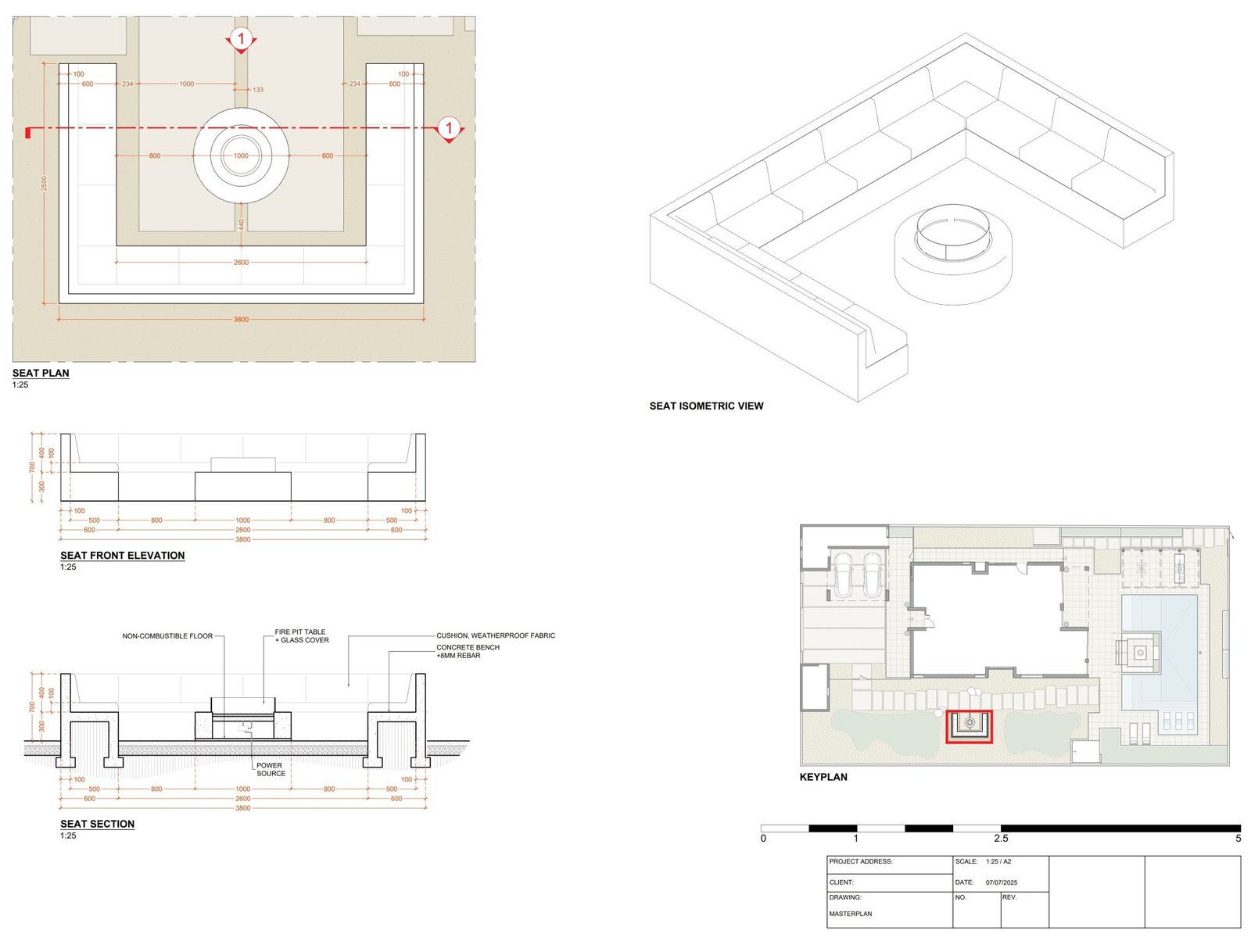

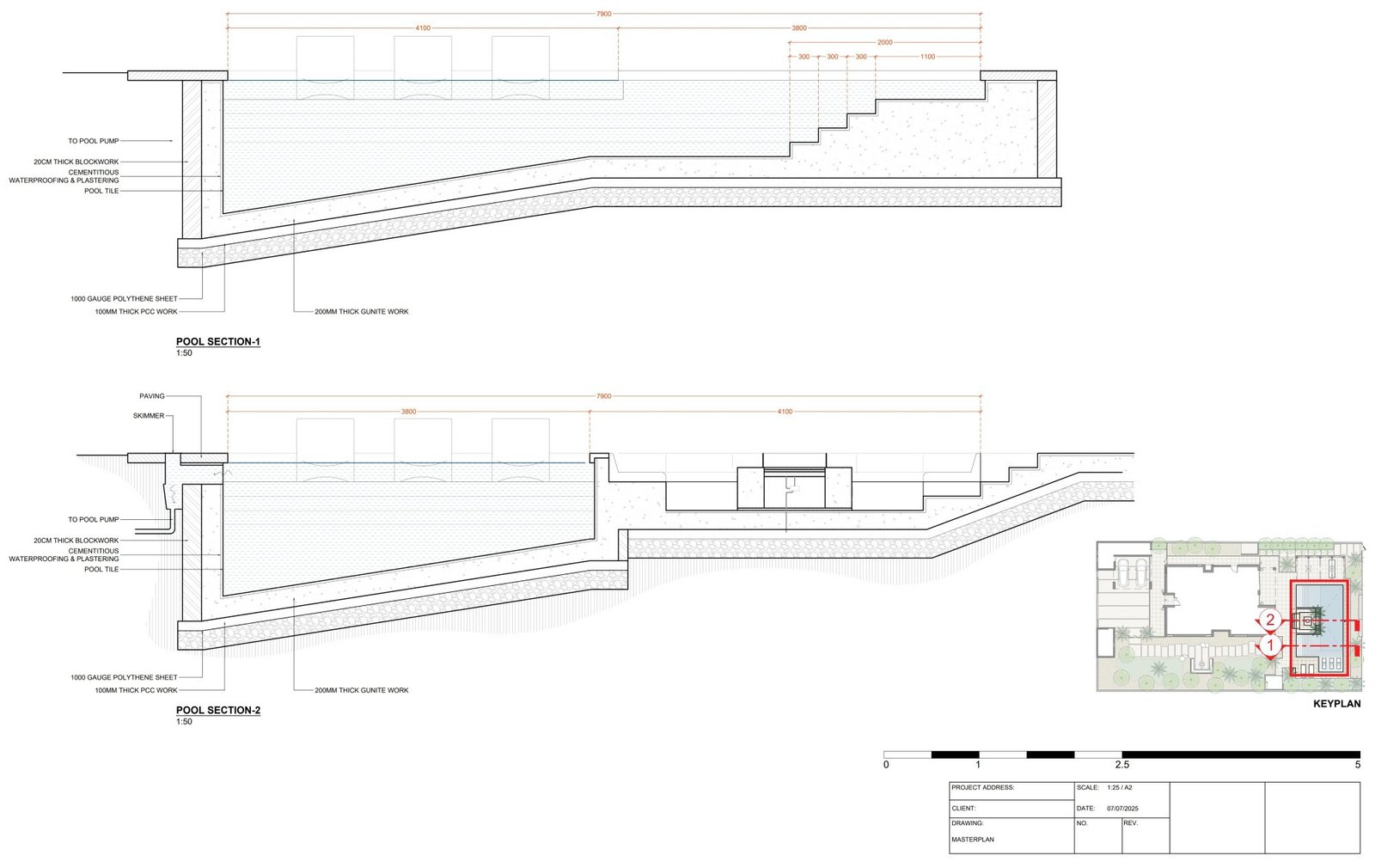

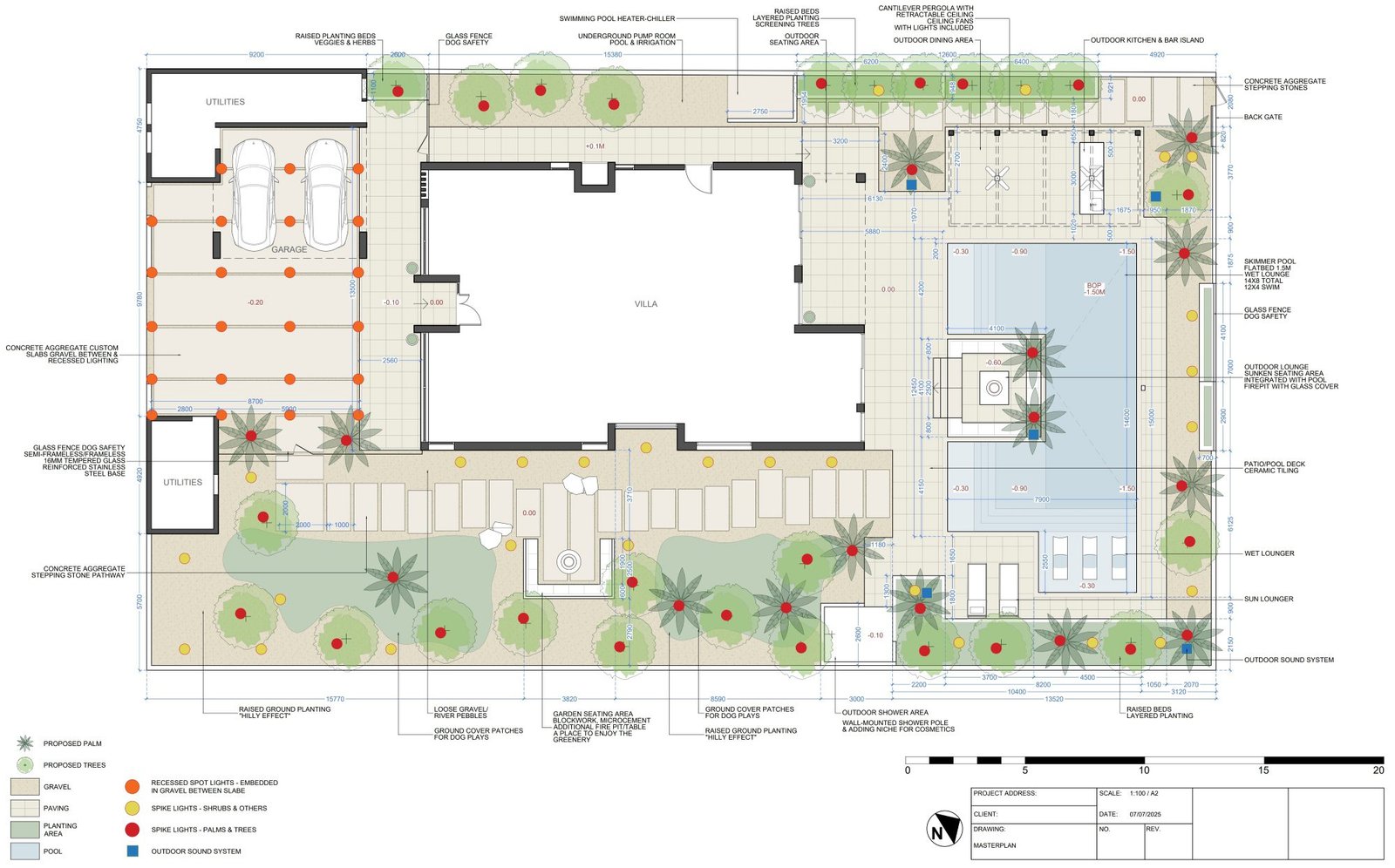

We produce complete drawing sets from client inputs, mark-ups and references. Scope includes site and master plans for landscape projects, architectural and interior floor plans, sections and elevations, plus coordinated shop drawings and technical details for consultants and fabricators.
Every set passes structured quality review to confirm notation, layering and compliance with project standards. The result is consistent, traceable drawing packages ready to integrate with architectural and landscape workflows for development, coordination, approvals, tender and construction.

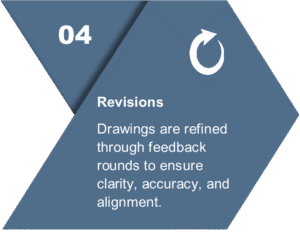

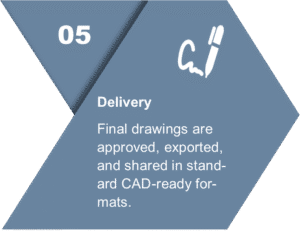

Our approach follows a clear sequence that keeps architectural and landscape drawings structured, accurate and aligned with the brief. We begin with scope confirmation and reference review, then proceed through drafting, coordination and revision to final issue. Each stage has defined touchpoints so feedback is focused and progress remains visible.
Standardised layering, notation and file naming preserve intent and make sets easy to navigate across teams. Drawings are coordinated against supplied plans, schedules and details, with changes tracked and incorporated methodically. This discipline reduces rework and maintains continuity between iterations.
Every issue is version-controlled and checked for scale, annotation and sheet consistency before release. Packages are prepared for practical milestones, design development, consultant coordination, client approval, tender and construction, so teams can review, issue and build from drawings that read clearly and remain traceable.
